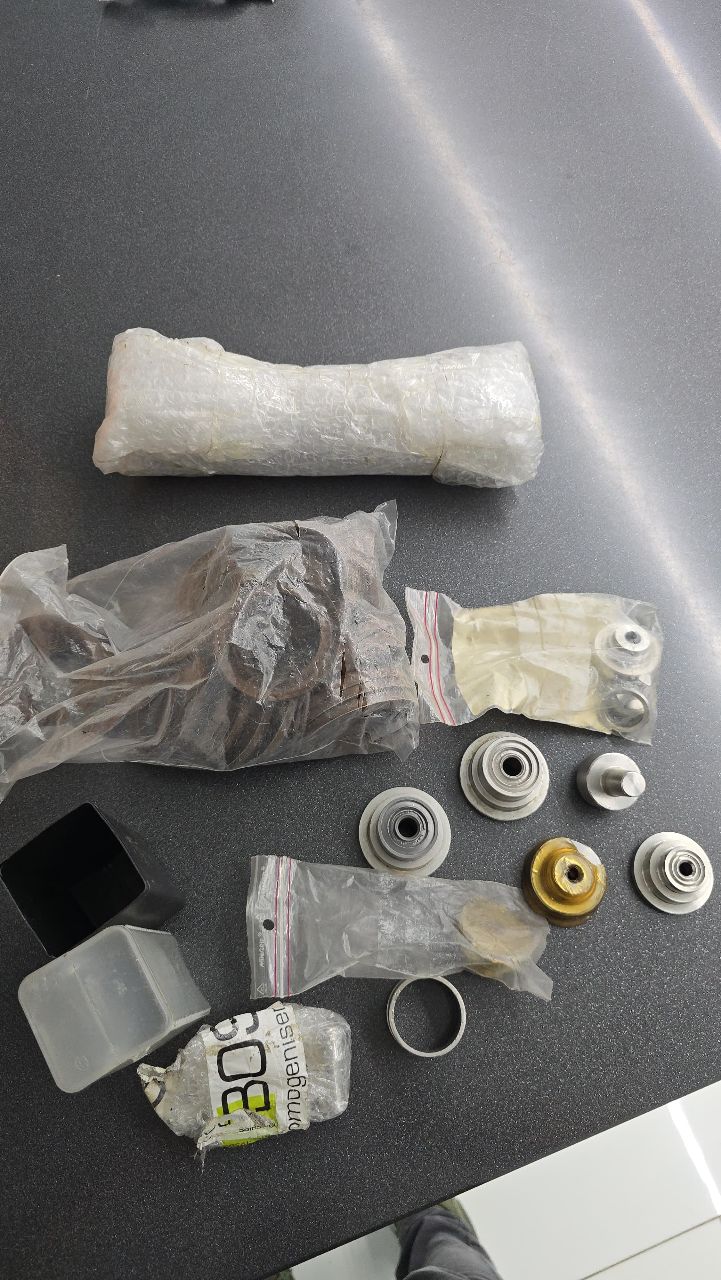

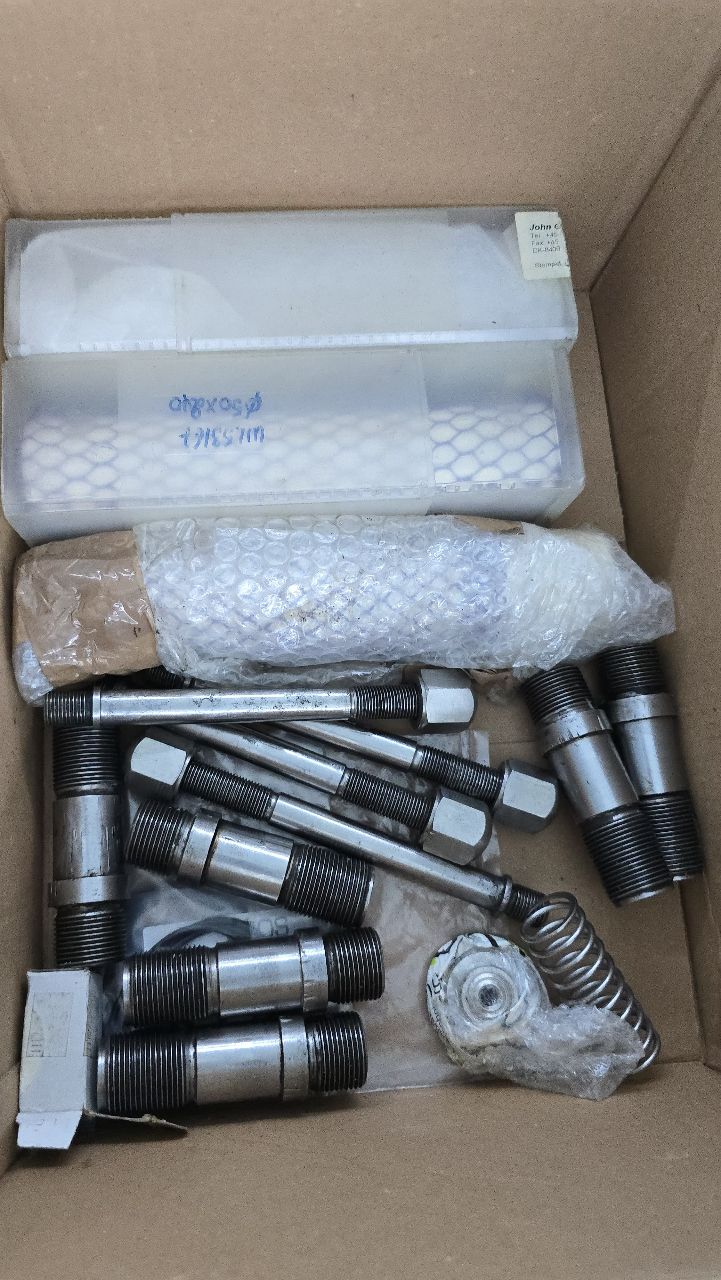

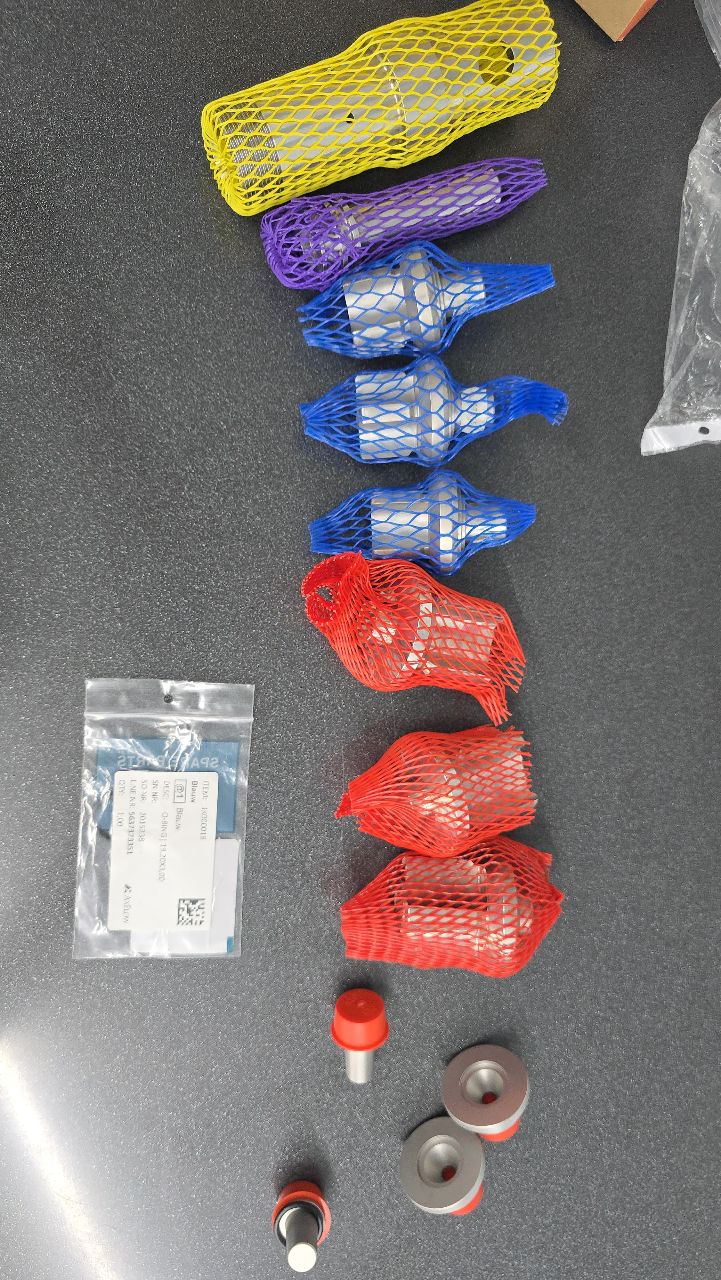

New parts included

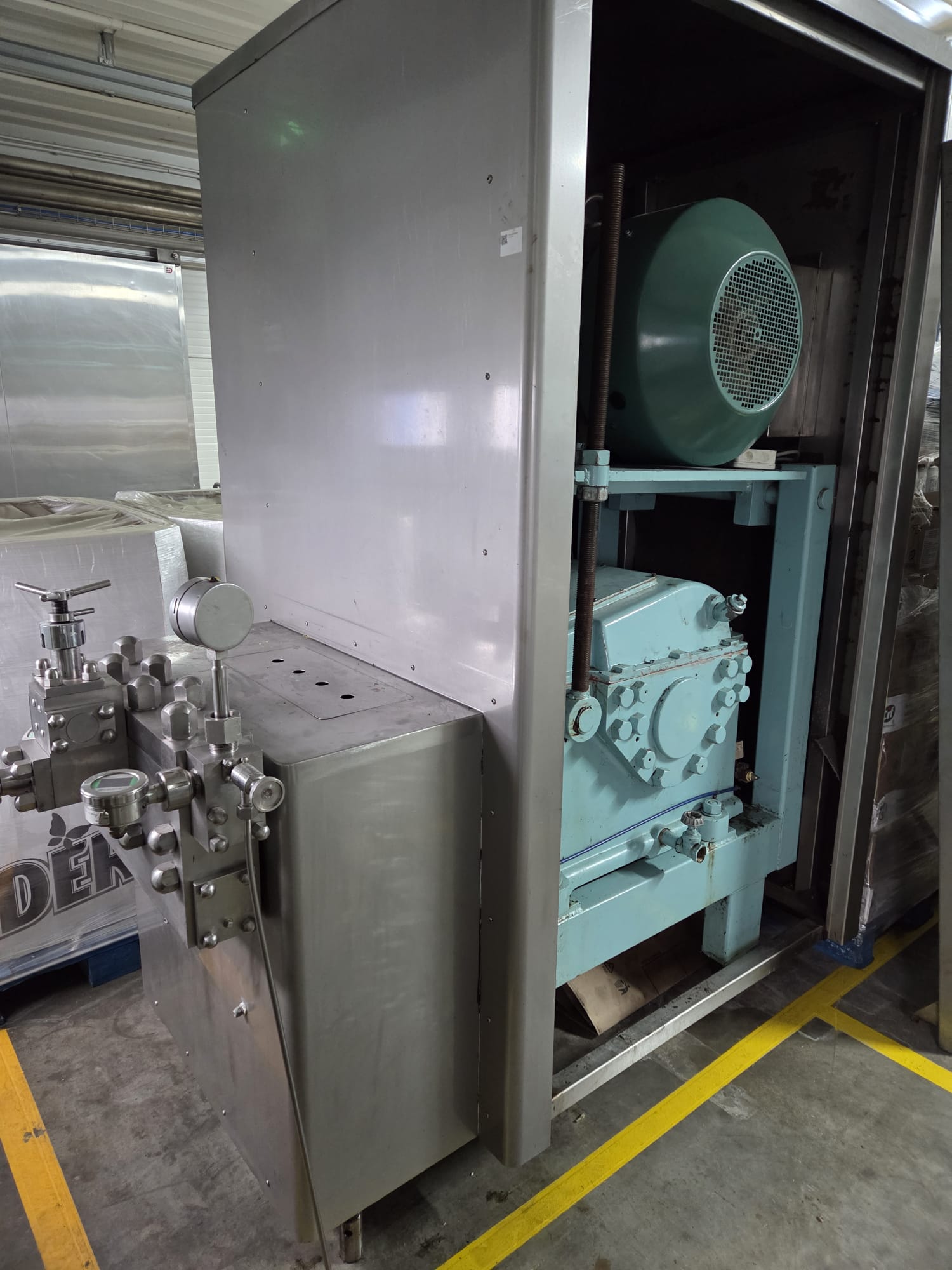

Based on the distinct three-cylinder layout with individual well pathways and ceramic plungers, this machine is an APV Rannie Blue-Top (Multi-Mic) industrial series homogenizer.
Size & weight
Footprint Dimensions:
Approx.
165 cm (Length)
100 cm (Width)
180 cm (Height)
Weight: 1500 kg
Not what you are looking for?
Check out our stock of ice cream continuous freezers.
Within this specific legacy family configured for a 3,000 l/h capacity, the APV Rannie Blue-Top homogenizer uses this exact internal block casing architecture.
This is the most common model setup for a 3,000 l/h dedicated production output.
- Model Family: Blue-Top / Multi-Mic
- Capacity Rating: Nominal 3,000 liters per hour (variable up to 3,300 l/h depending on motor pulley).
- Maximum Pressure: Typically 230 bar to 310 bar (3,300 to 4,500 psi).
- Piston Dimensions: 36 mm plunger diameter with a 72 mm stroke length.

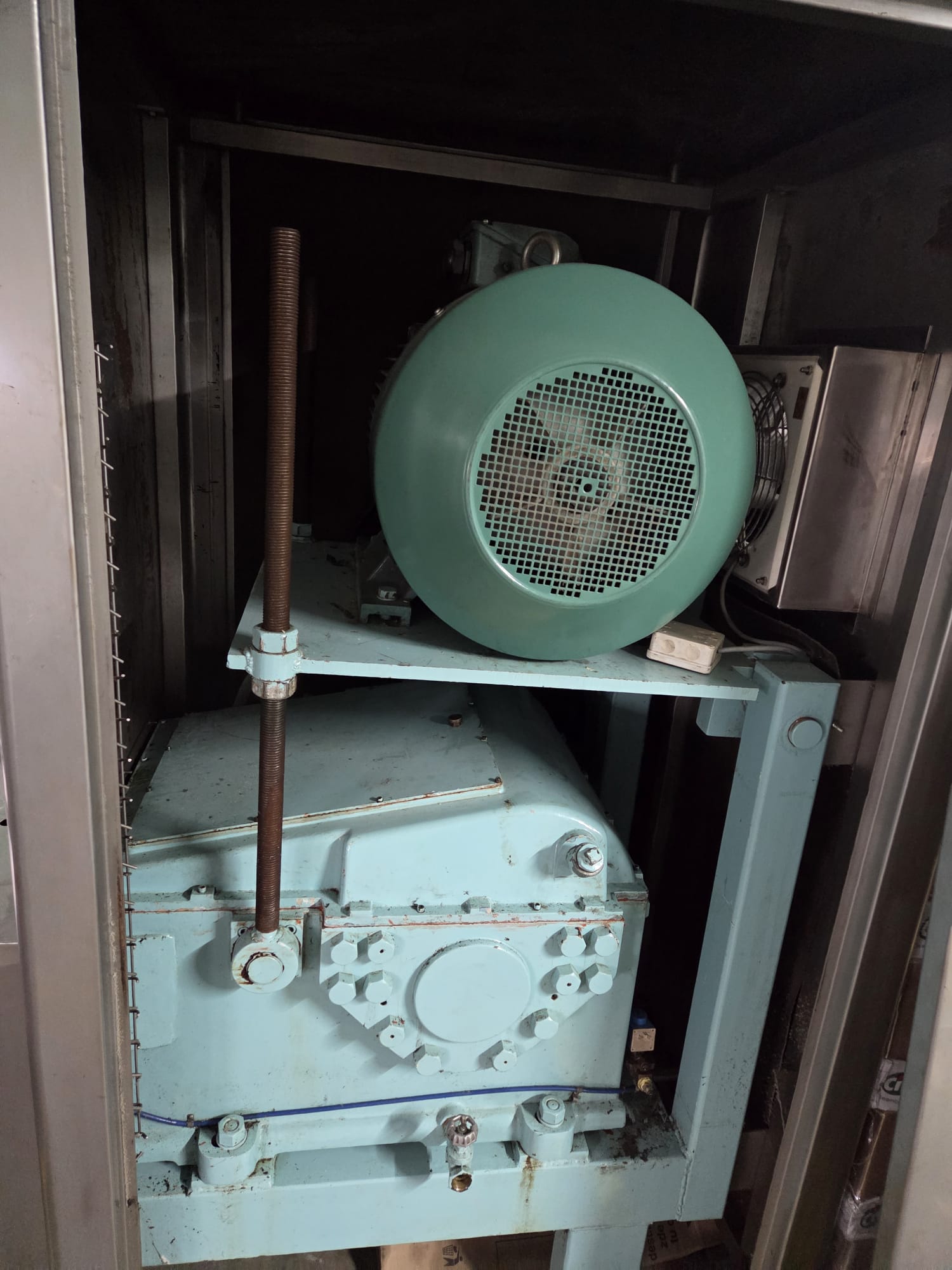

- Drive Motor Requirements: Typically 22 kW to 24 kW main electric drive.

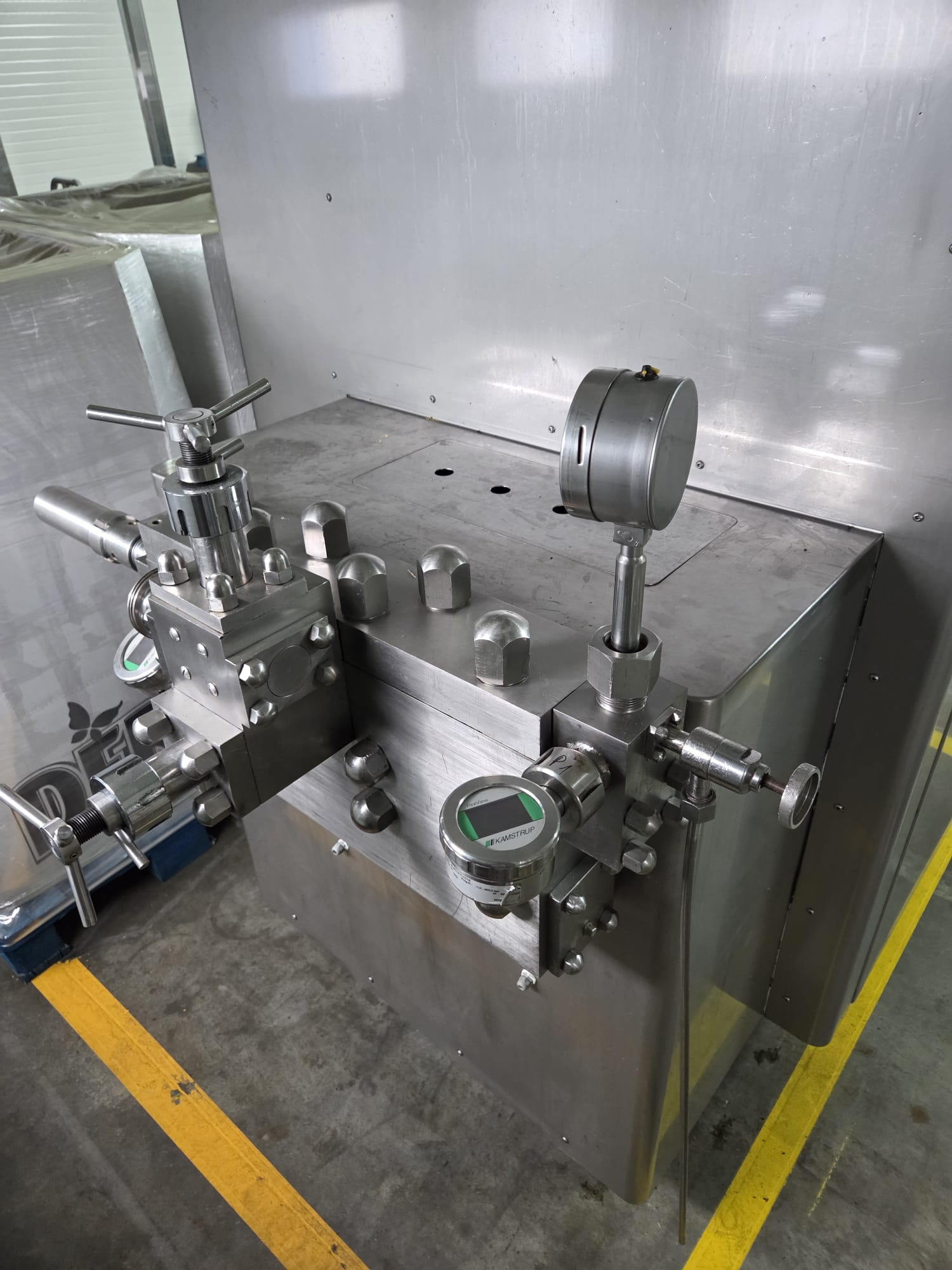

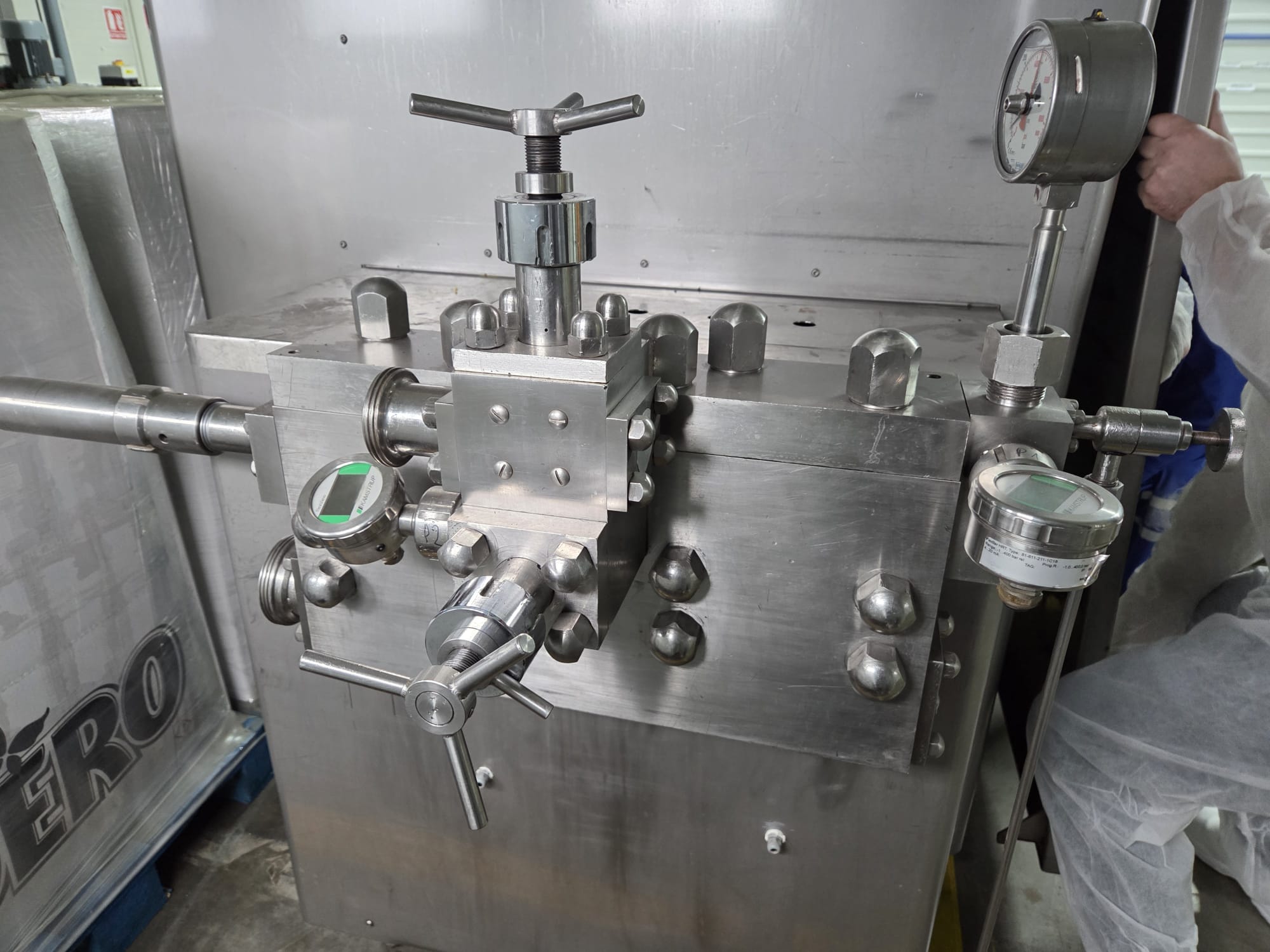

- Valve Stages: Equipped as a 2-Stage machine with dual manual adjusting handwheels (as seen in your second photo).
- Liquid End Design: Classic Rannie 3-piece independent forged steel cylinder blocks.

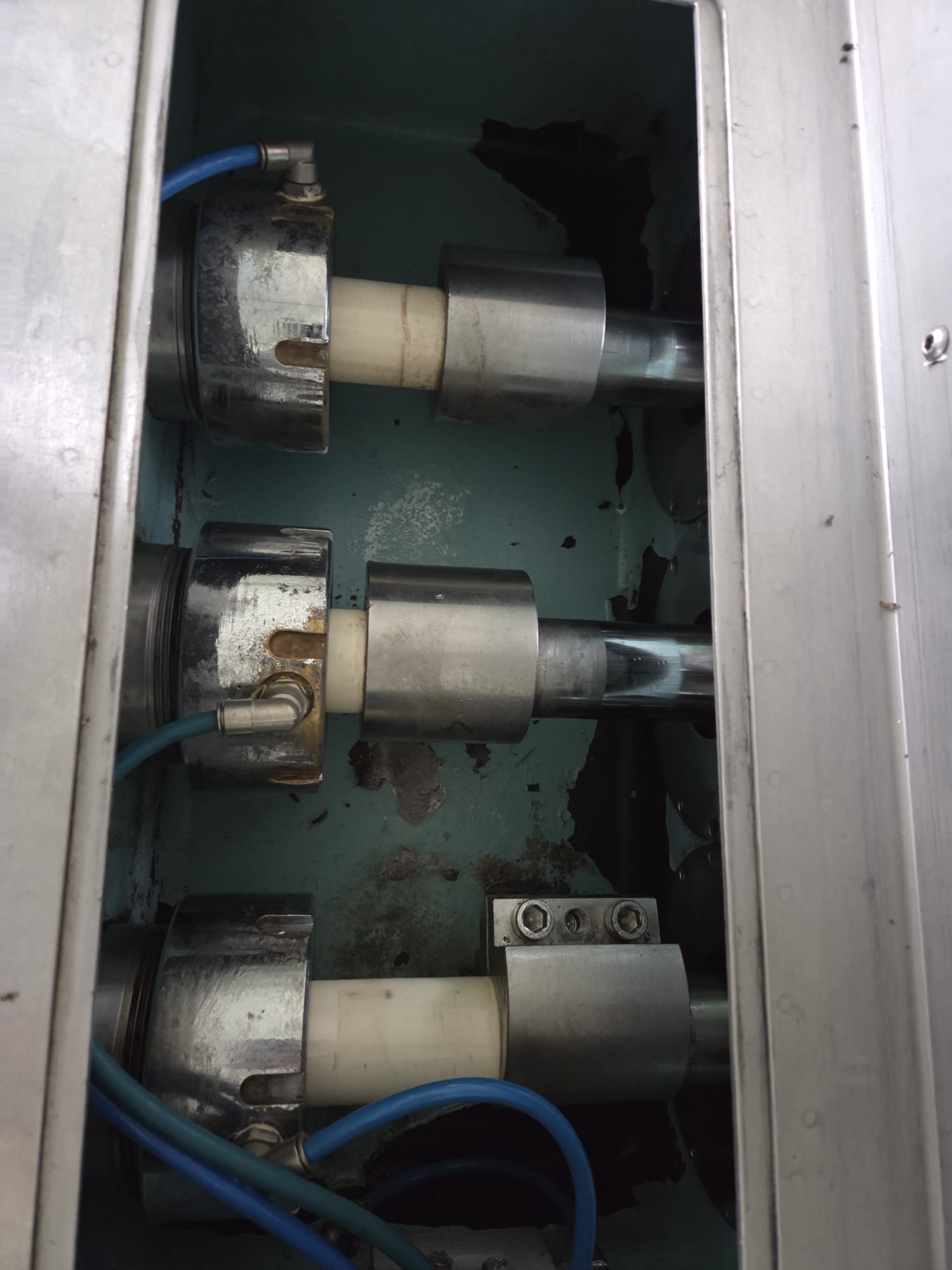

- Plunger Type: Solid high-density white alpha-alumina ceramic pistons.
- Cooling System: Closed well basin with active water flushing delivered via individual blue polyurethane tubing line fittings
